PM Fine Pixel Pitch

Mini Series

INDOOR

____ Creations change the world!

Pixel Pitch::1.25/1.5/1.87/2.5mm
Cabinet Size 480*540mm
Operating Environment: indoor

Flexible Assembly, Smooth Image

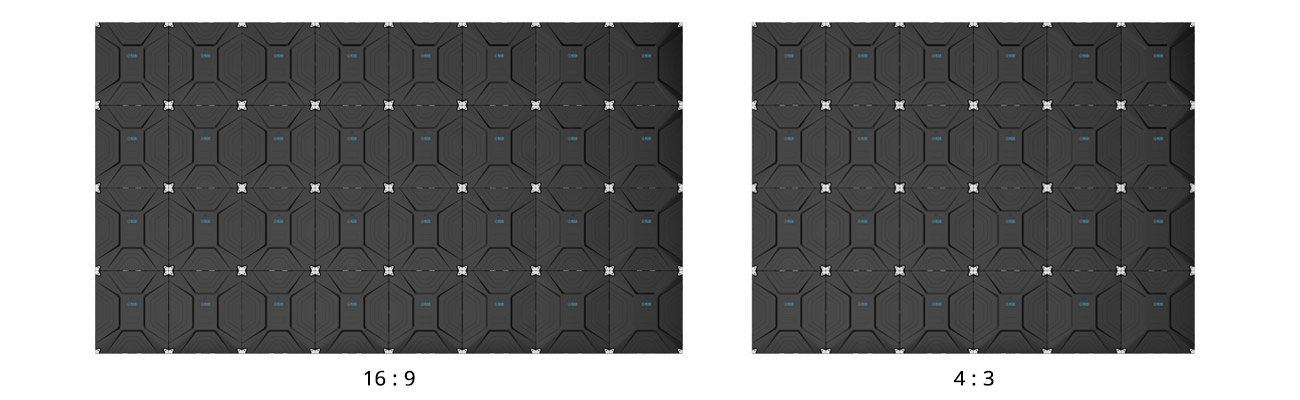

The ratio of single cabinet is 8: 9, it can realize 16: 9/4: 3 ratio easily to meet customers’different needs. Adopting imported floating joints for the module connecting base, can realize the module displacement of 0.8mm without any effect for the connection. The LED display can be adjusted between front&back, up&down left&right slightly to achieve seamless splicing, matching with excellent image denoising to improve the smoothness of image , to show the best visual performance.

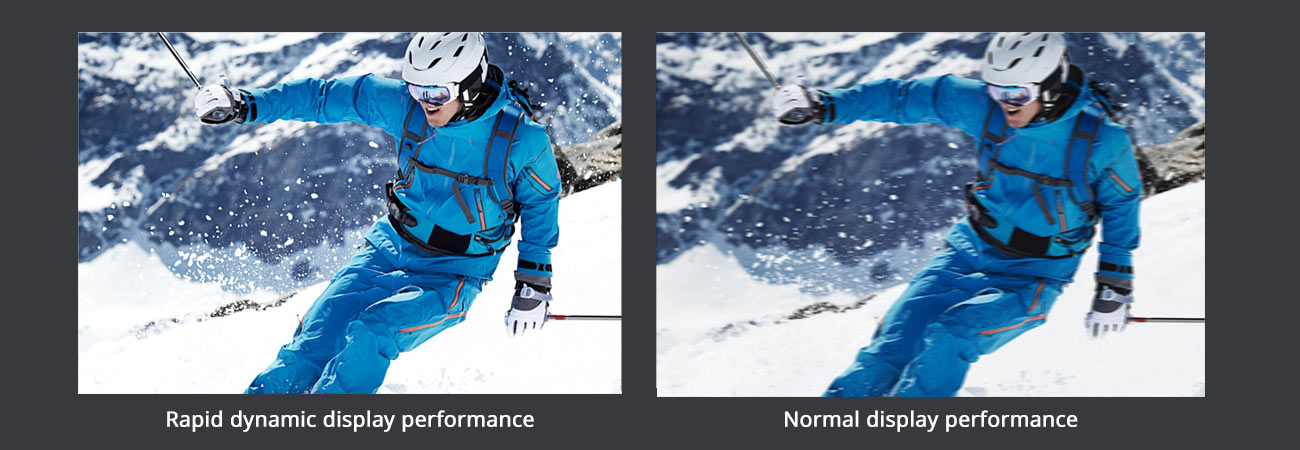

22bit Gray Scale Output, Nanosecond Response

With the characteristics of Broadcast-level grayscale processing, LED autonomous imaging, and nanosecond response , PM series can quickly respond to image changes. Combining with 22bit grayscale output and ultra-high refresh rate, the screen showing is clearer, the reduction degree of dynamic imaging is higher.

High Stability and Reliability

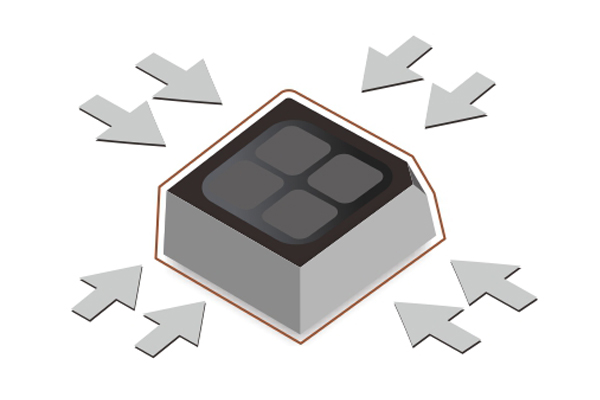

Adopt integrated matrix package technology to improve the anti-collision ability of LED lamps.
The air tightness of LED lamps is excellent, which improves the stability greatly.
Long lasting life expectancy: Double backup for the power and signal to ensure the connection stable and reliable

Good Heat Dissipation and Energy Saving

The power supply close to the cabinet back, low heat, good heat-conducting performance, super quiet, stable display, energy saving and environment-friendly.

Wide Applications

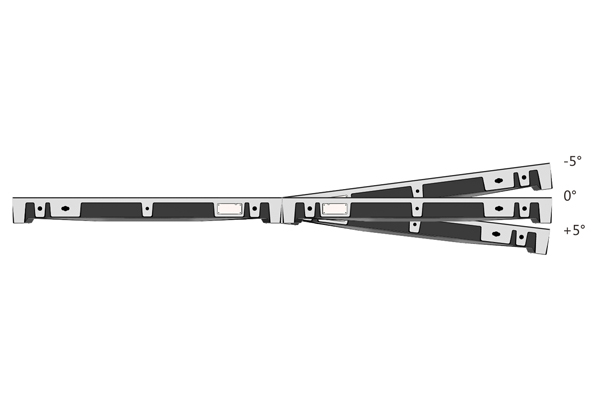

Supporting +5°, 0°, -5° curve connection which make more designs and possibility; Wide applications via many kinds of installation, such as wall hanging, hanging and mounting etc.
