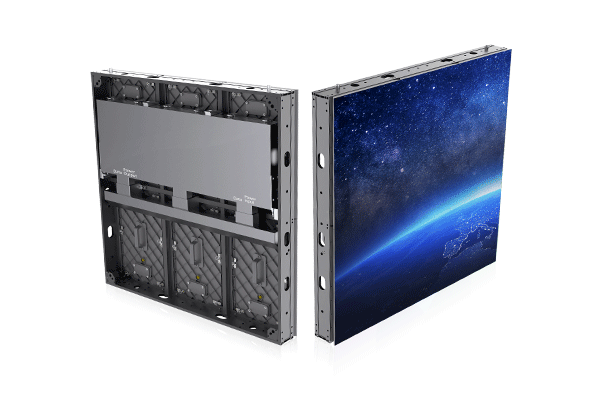

Msign Series

Open a new horizon of Outdoor fixed installation

____ Creations change the world!

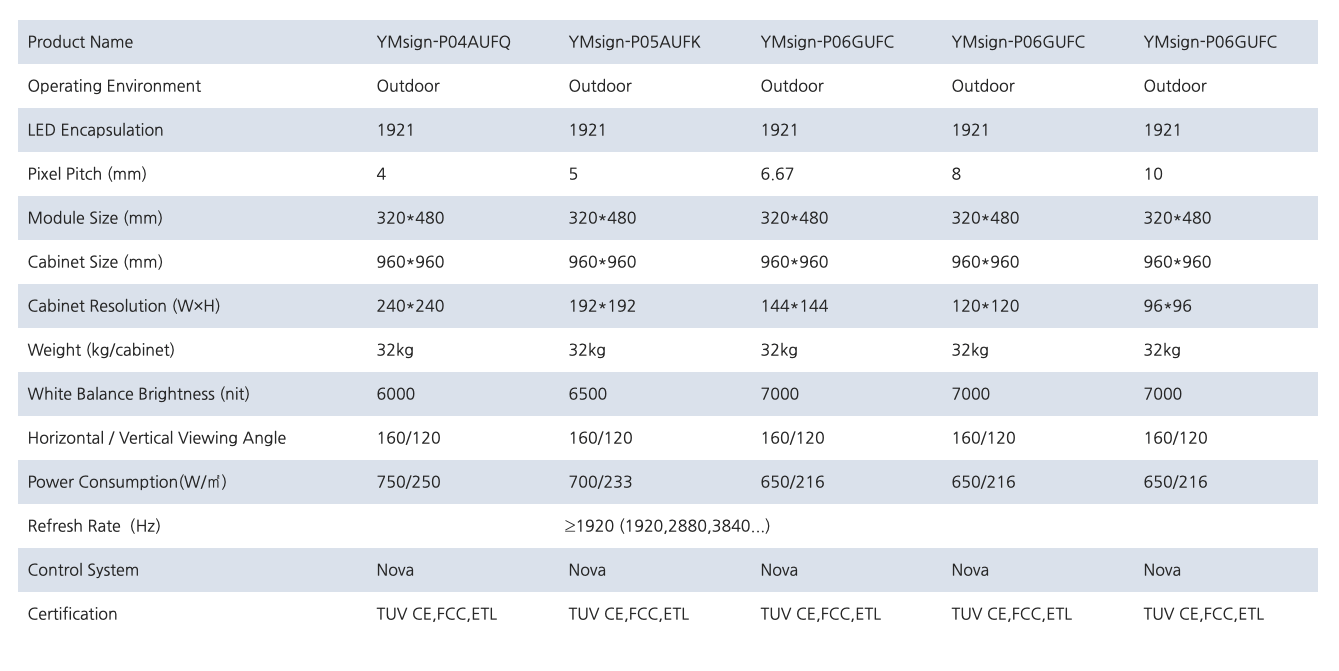

Pixel Pitch::4/5/6.6/8/10mm
Module Size 320*480mm

Cabinet Size:
960*960mm960*480/1280*960/1280*480/640*960/1600*480mm）
Operating Environment: outdoor

Msign Series-Outdoor fixed

Born to be landmark
Fast installation and maintenance, high compatibility, working in severe environment, smart module

Clean and beautiful cabinet design

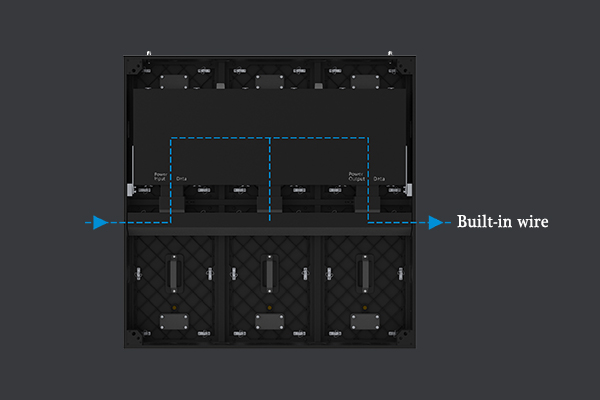

Connection cables are hidden in structure, which effectively prevent the cables aging.

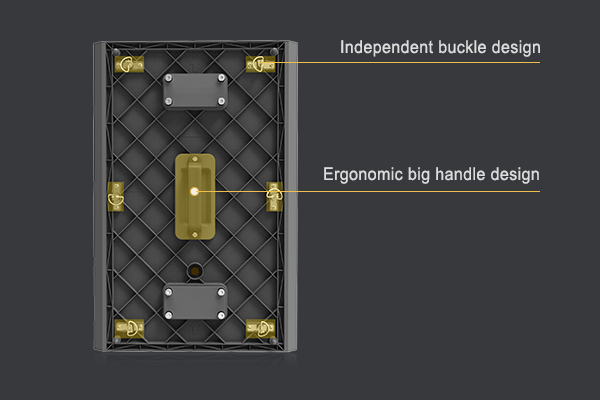

6 independent buckle design on module, twist and “Click” voice reminder, fast assembly; Ergonomic big handle design, more comfortable grip.

Clean and beautiful cabinet design

High compatibility

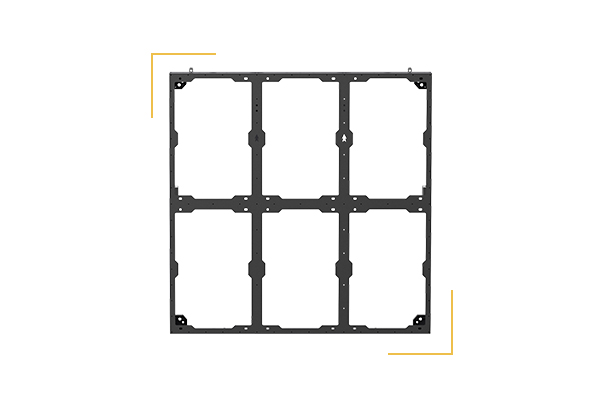

6 different cabinet sizes available;Shared cabinet frame,upgrade pixel pitch freely,save the purchase cost.

One type for all

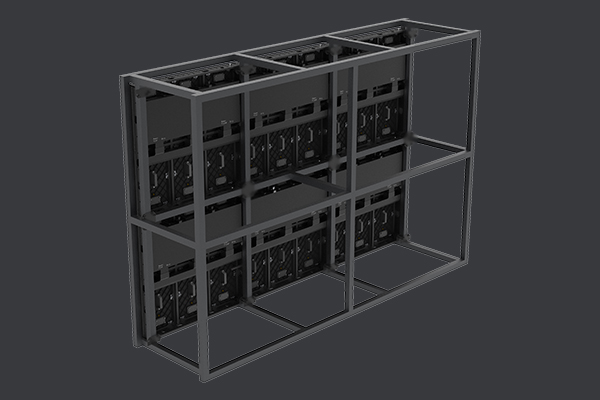

8-holes connection plate support front and rear installation; Compatible with 5050 and 4040 steel frame, one type for all, and makes construction more worry-free;

One type for all

8-holes connection plate support front and rear installation; Compatible with 5050 and 4040 steel frame, one type for all, and makes construction more worry-free;

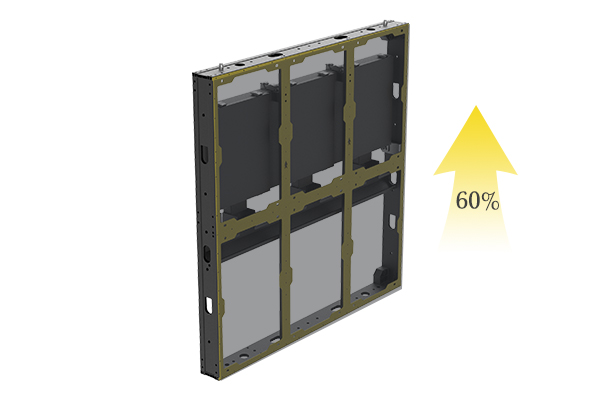

Better flatness

The front of the cabinet frame is formed by a whole board without welding, which improves the processing accuracy by 60% compared with the ordinary process, and ensure a better flatness of the large screen, as well as coherent and smooth picture.

Partition design, efficient maintenance is improved by more than 3 times

Full front maintenance, front and rear dual maintenance. Partition design on control box, which realize the partition maintenance, find failure quickly, simplify maintenance steps.
The control box and the wire box are independent of each other, independent open-close.

8-holes connection plate support front and rear installation; Compatible with 5050 and 4040 steel frame, one type for all, and makes construction more worry-free;

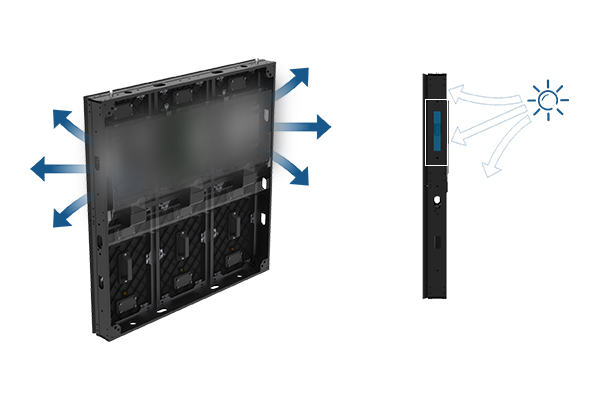

Heat isolation and heat dissipation system

Heat isolation system
Ingenious design of the power supply location makes the power supply locate in the middle of the back cover and the led module to prevent the conduction of external heat to the power supply when sunlight shoot directly on screen.

Heat dissipation system
performance of aluminum material + cabinet ventilation structure design + module heat conduction balance system

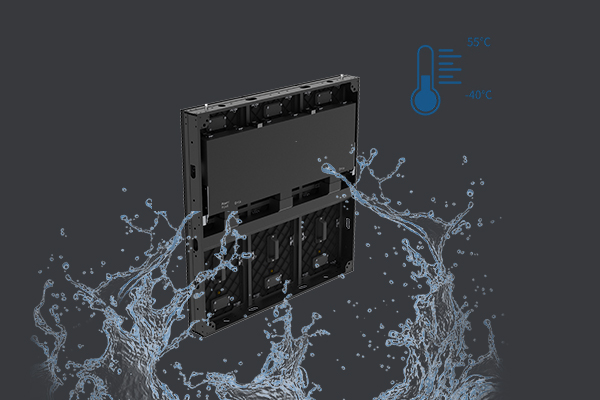

Independent waterproof design, working in severe environment

Module waterproof reach IP65 in front/rear, cabinet reach IP65 in front, IP54 in rear (IP65 for option), module and control box are both independent waterproof design. Working in all-weather, barrier-free for installation and maintenance in rainy day. Working in severe environment -40℃ to 55℃.

Independent waterproof design, working in severe environment

High-brightness, high-refresh and high-contrast

Adopt 3535 high brightness lamp, brightness can be adjusted automatically; High-refresh and high-contrast (Can provide higher edge mask), no fear of strong light application, clear and bright outdoor display.

Stable and Reliable

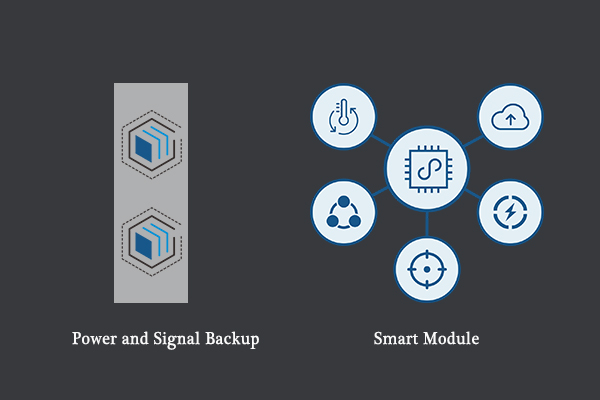

Power and signal backup
Power and signal backup makes screen has multiple guarantees when using, stable and reliable working are ensured.

Smart Module, smart monitoring
Detection of temperature,voltage,fault,lamps,positioning fast of fault and quick feedback all can be achieved with functions of module memory plus automatic detection.
