Open a new horizon of Outdoor fixed installation
____ Creations change the world!

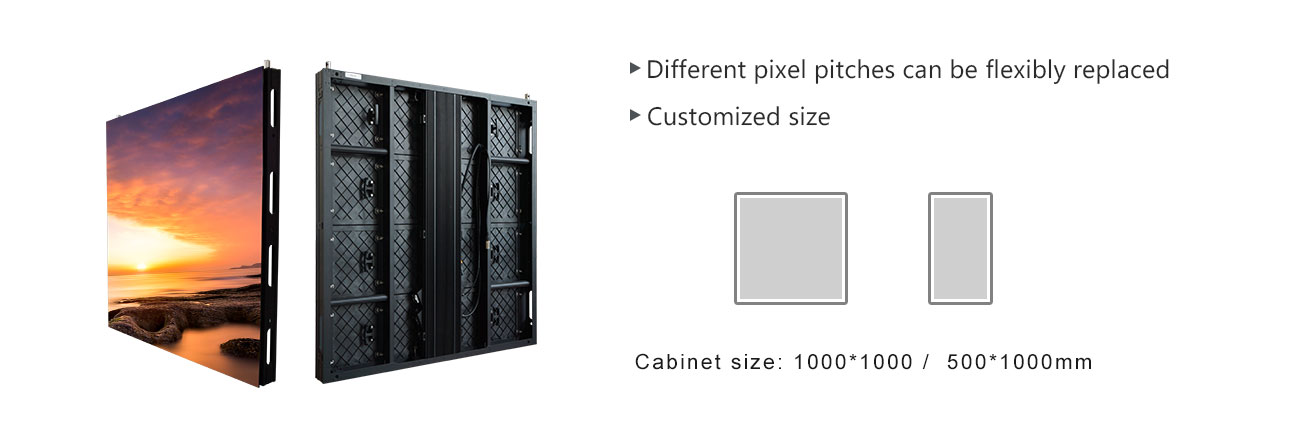

Pixel Pitch::5.9/7.8/10.4mm
Module Size 500*1000mm,1000*1000mm
Operating Environment: outdoor

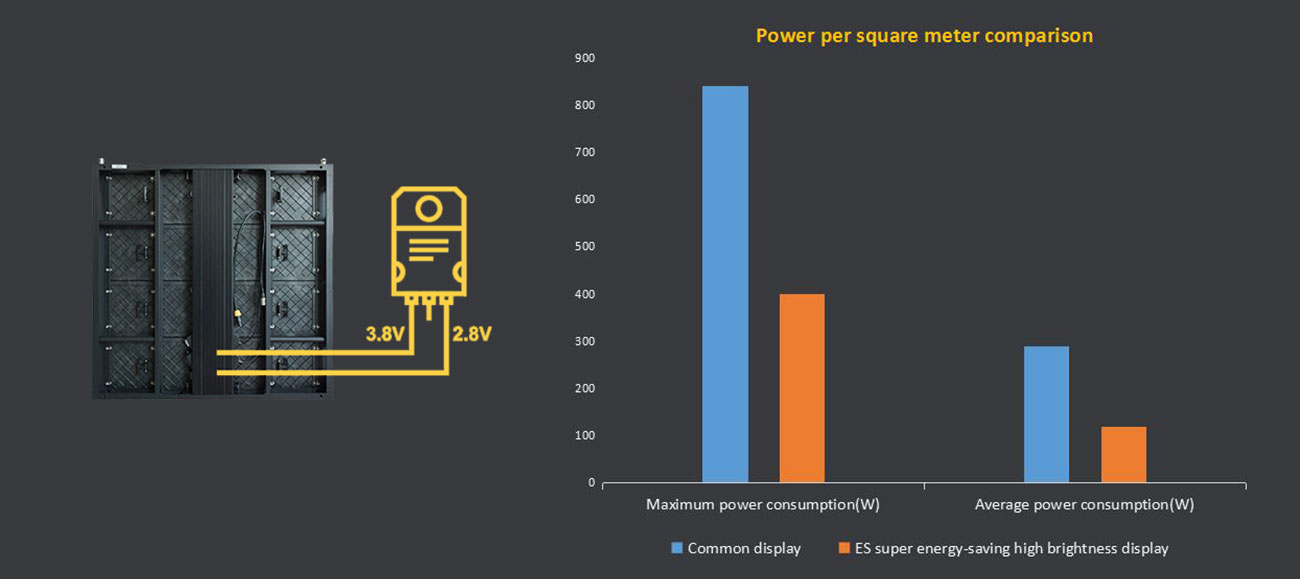

Super Efficient Energy Saving
Super Energy-saving, Super High Brightness
![American Led Displays](img/fixed-series/new-outdoor/es-series-1.jpeg)
Super Efficient Energy Saving
Super Energy-saving, Super High Brightness
![American Led Displays](img/fixed-series/new-outdoor/es-series-2.jpeg)

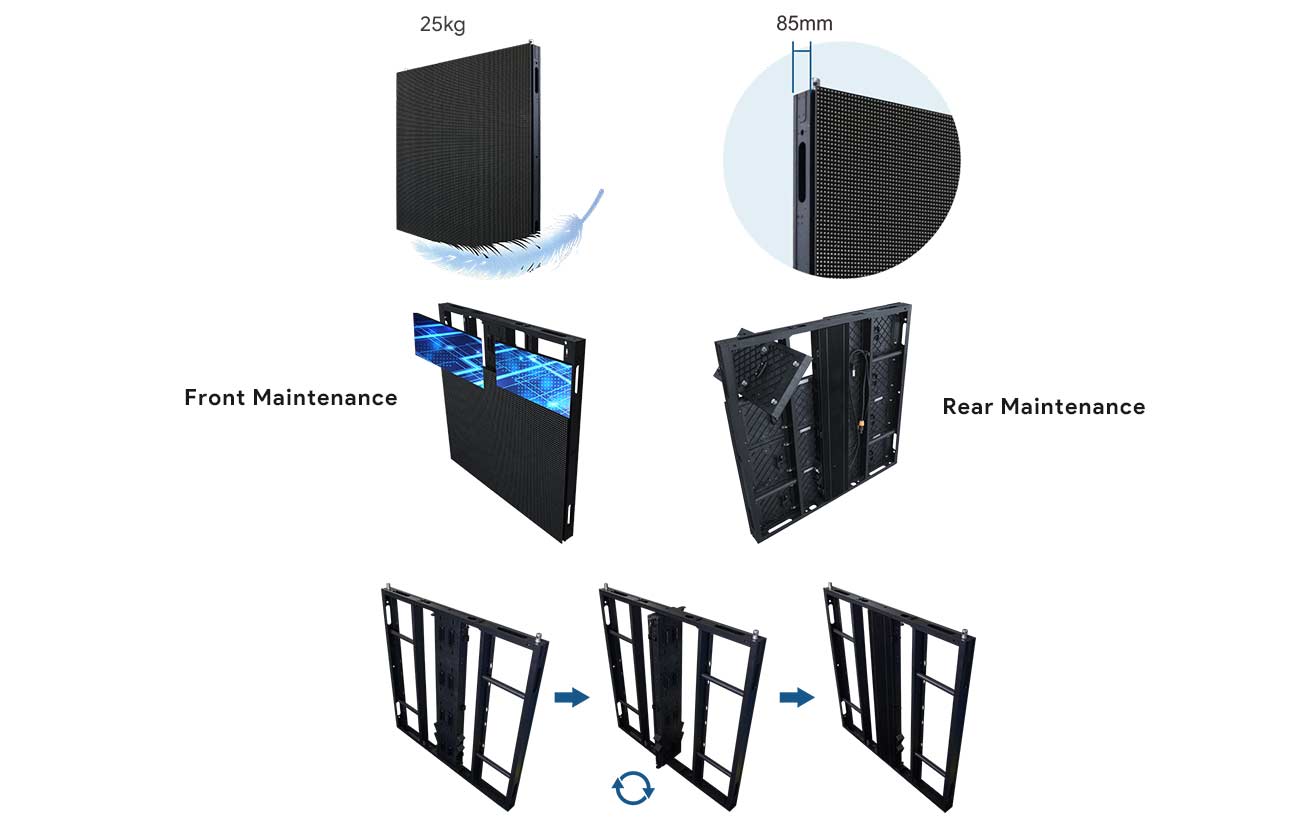

Easier Installation and Faster Maintenance
The cabinet is made of 6063 aluminum alloy material, which ensures the structural safety
of the cabinet while reducing the weight. It weighs only 25kg/㎡ and the thickness is only 85mm,
saving installation and transportation costs.
Front & rear maintenance, convenient for maintenance, saving operating costs.
The power part of the cabinet can be rotated to the front for maintenance.
![American Led Displays](img/fixed-series/new-outdoor/es-series-3.jpeg)
Safety and Stability
Fire-proof level reaches V-0 to avoid fire hazards, high protection performance.
Integrated waterproof module design, front&rear IP65 protection grade. High UV grade, strong ultraviolet radiation resistance. 6063 aluminum material, strong anti-corrosion and salt spray resistance.
The ambient temperature of the product is -30-50℃, and it can be used under extreme temperature without fear of harsh weather environment. Wireless design for the internal structure of cabinet to improve stability.
![American Led Displays](img/fixed-series/new-outdoor/es-series-4.jpeg)
High Contrast Ratio & Refresh Rate & Brightness
8000:1 high contrast ratio, up to 10000nit high brightness, 3840Hz high refresh rate,
more clearer, richer and brighter for outdoor display.
![American Led Displays](img/fixed-series/new-outdoor/es-series-5.jpeg)

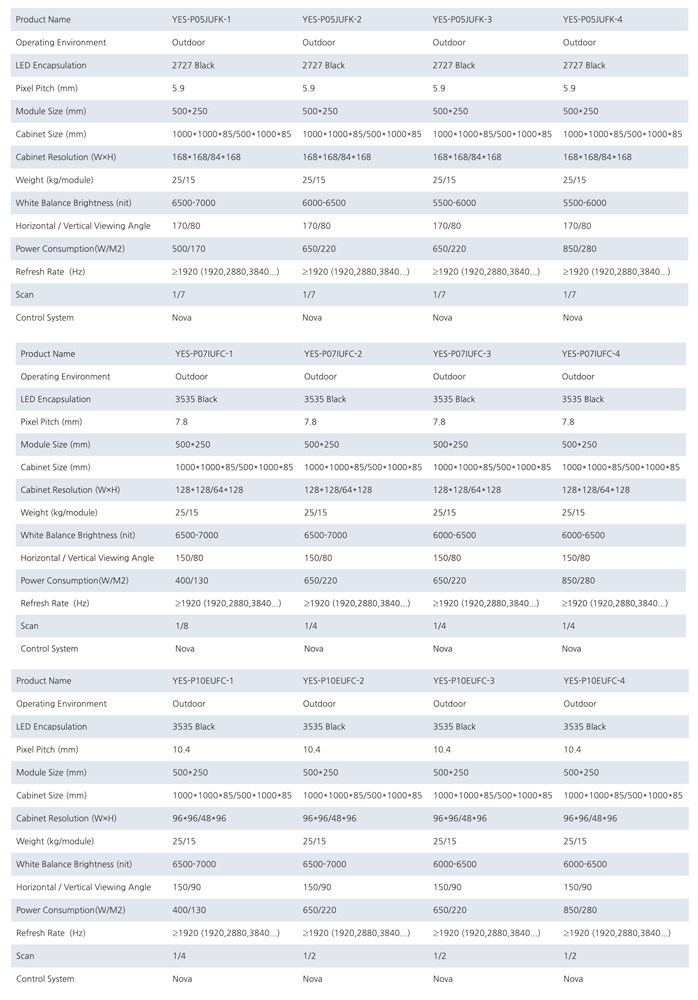

SPECIFICATION
![American Led Display](img/fixed-series/new-outdoor/es-series-specification.jpeg)

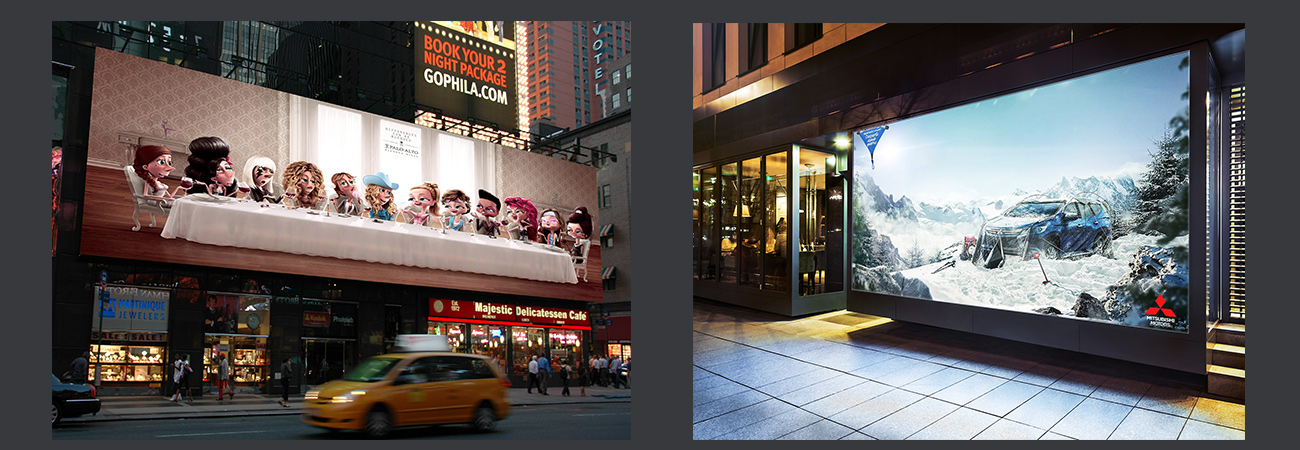

Application scenarios
It is widely used shopping mall, outside building, billboard and so on...
![American Led Displays](img/fixed-series/new-outdoor/es-series-6.jpeg)
